DAKOTA ULTRASONIC  UMX-2

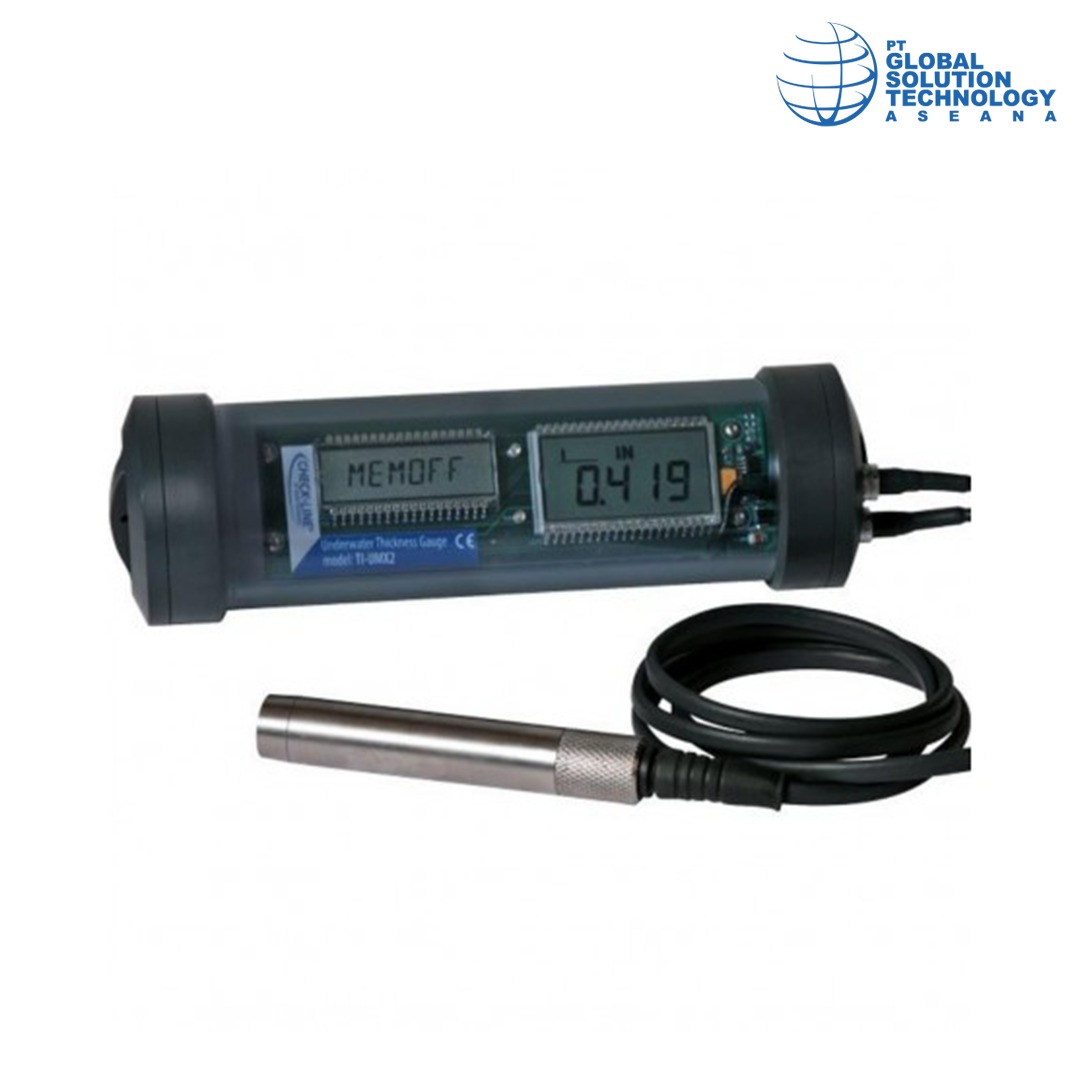

UMX-2 Ultrasonic Underwater Gauge

Measuring

Range:Pulse-Echo Mode (P-E): (Pit&Flaw Detection) measures from 0.025 19.999 inches (0.63 to 500 millimeters).

Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters).

Echo-Echo Mode (E-E): Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 102 millimeters). Range will vary +/- depending on the coating.

Triple-Echo Mode (TCG): Thru Paint&Coatings) measures from 0.040 to 6.0 inches (1 to 150 millimeters) in steel. Range will vary based on coating thickness, material type, and probe.

Resolution: +/- .001 inches (0.01 mm)

Velocity Range: .0492 to .5510 in./µs 1250 to 13995 meters/sec

Units: English & Metric.

Transducer

Auto Probe Zero: Applies to dual element probes only.

Transducer Types: Dual Element 1 to 10 MHz frequency range. Custom auto recognition probes. (flaw & pit detection).

Single Element: 1 to 10MHz frequency range (general purpose).

LEMO underwater connectors.

Standard 4 foot cable.

Custom transducers and cable lengths available for special applications.
